After the success of the B760M-AYM WIFI motherboard, ASUS decided to up their game and release the B760M-AYM PRO WIFI, which does everything the previous one did but comes with better specifications.
On top of that, enthusiasts now have even more options to choose from when installing their Intel 14th, 13th, and 12th-generation processors, as this motherboard supports the Intel 700 chipset. The PRO and base model share the same form factor, that is, mATX, but we’ll highlight the difference between the two.
ASUS B760M-AYM specs comparison
| Specification | ASUS B760M-AYM PRO WIFI | ASUS B760M-AYM WIFI |
| Graphics | 1 x DisplayPort 1 x HDMI port | 1 x HDMI port |
| Expansion slots | 1 x PCIe 4.0 x 16 1 x PCIe 4.0 x 1 | 1 x PCIe 4.0 x 16 2 x PCIe 4.0 x 1 |
| Storage | 2 x M.2 slots 2 x SATA 6Gb/s ports | 2 x M.2 slots 4 x SATA 6Gb/s ports |
| USB | Rear 2 x USB 10Gbps ports4 x USB 5Gbps ports 2 x USB 2.0 ports Front 1 x USB 5Gbps connector (USB-C support)1 x USB 5Gbps header (supports 2 extra USB 5Gbps ports)1 x USB 2.0 header (supports 2 extra USB 2.0 ports) | Rear 4 x USB 3.2 Gen 1 (5G) ports 2 x USB 2.0 ports Front 1 x USB 3.2 Gen 1 (5G) header with 2 extra USB 3.2 port support 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Back panel I/O ports | 2 x USB 10Gbps ports 4 x USB 5Gbps ports 2 x USB 2.0 ports 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks | 4 x USB 3.2 Gen 1 (5G) ports 2 x USB 2.0 ports 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Internal I/O connections | 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers | 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers |
As you can see, the major changes made to the PRO model were in the ports and I/O connections. This motherboard is live on ASUS’s official website, but if you’re interested in exploring other options for your powerful Intel processors, check out our best motherboard for Intel 14th Gen guide for the top picks.

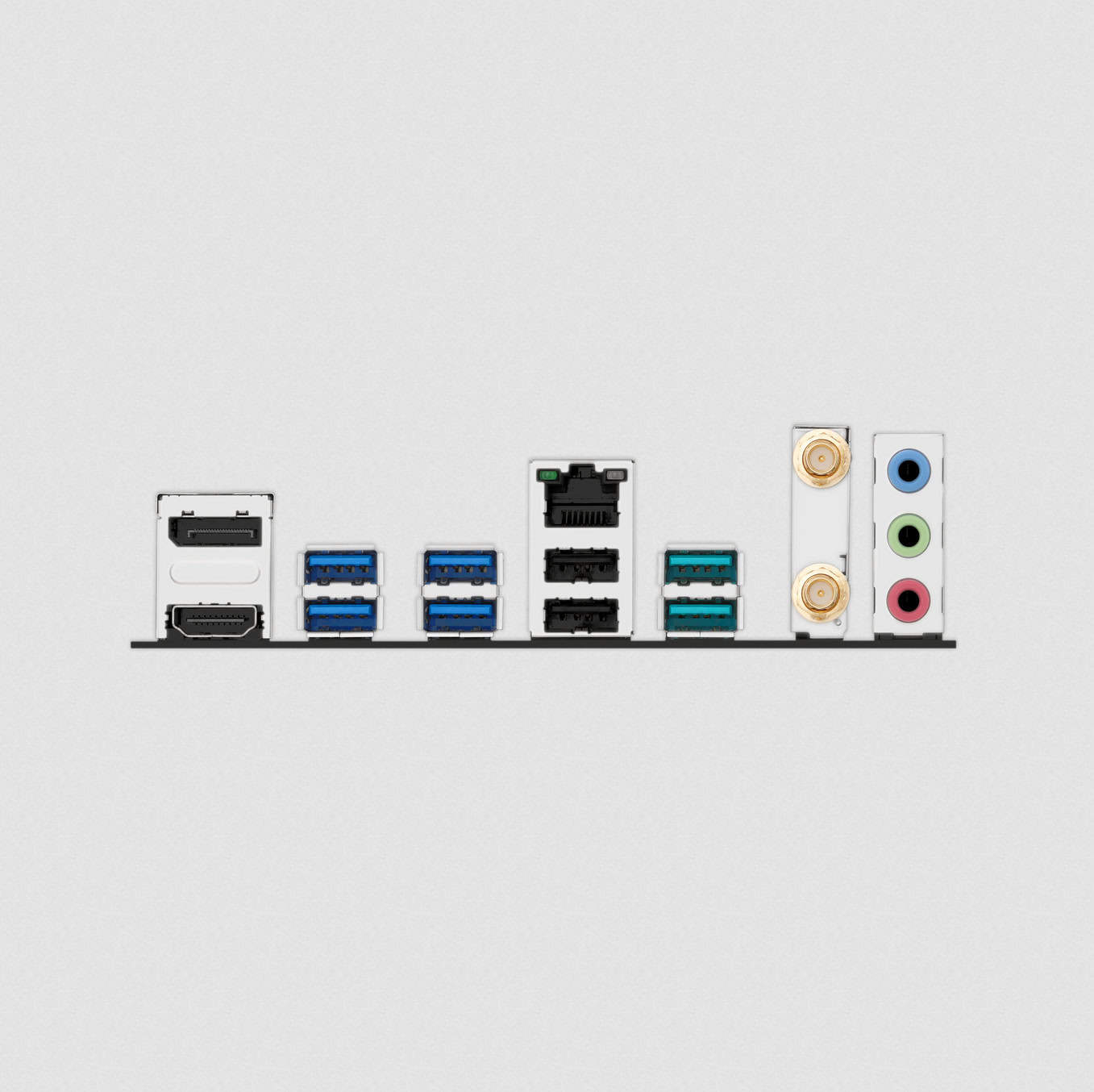

ASUS B760M PRO WIFI ports
ASUS B760M PRO WIFI overview
