The Ryzen 7 5800XT was released last month, on July 31st, and is available on retailers like Amazon. However, this CPU launch wasn't without controversy, as the 5800XT has exactly the same specifications as the 5800X. That also means it sits on the AM4 socket, and since that is an eight-year-old platform, there are tons of options to choose from.
We've reviewed the Gigabyte Aorus X570 Pro, which is an old motherboard, but it is needed to run the 5800XT and complements the prowess of Zen 3 CPUs. So, without further ado, let's get right into it.
AMD launches latest Ryzen 9 9950X3D & 9900X3D CPUs!
AMD's highly anticipated Ryzen 9 9950X3D and 9900X3D chips have finally arrived! Below, we will be listing all the latest listings from the web's biggest retailers.
- AMD Ryzen 9 9950X3D
- AMD Ryzen 9 9900X3D
- AMD Ryzen 9 9950X3D - CA
- AMD Ryzen 9 9900X3D - CA
- AMD Ryzen 9 9950X3D - Newegg
*Stock availability and pricing subject to change depending on retailer or outlet.
You can also check out our Where to Buy 5800XT page to find all the major retailers offering this CPU.
Why the Gigabyte Aorus X570 Pro
The Gigabyte Aorus X570 Pro is an ATX motherboard, meaning it'll need a mid-tower or full-tower casing to house it comfortably. So, if you've got an ITX PC case, this motherboard probably won't fit in that. We recommend using the best full tower case to ensure you don't run into sizing issues.
It also operates on the PCIe 4.0 version but should also work with PCIe 5.0 devices, as all PCIe versions are backward compatible. That said, don't expect the lightning-fast speed of Gen 5.0, as even if they are compatible, the hardware will operate on its maximum limit.
This motherboard’s design is very gamer-like. It has RGB lighting, the Aorus logo on the fan, and a very industrial-like layout, giving it a robust look. You have the option to turn off the RGB if you prefer a stealth build. On the other hand, the sleek RGB lighting could also add to the overall aesthetic of your build if you prefer a more “gamer” build.
The M.2 slots on this motherboard come with heatsinks, which is great to see as these devices can get hot, and effective thermal dissipation is key for optimal performance. It doesn't end with that, though, as the I/O shield comes pre-installed. This is an excellent design option and a breath of fresh air for all PC builders. So you won't have to worry about taking apart your entire build just to install the I/O shield.
It also comes with 12+2 power filtering, meaning 12 MOS VRMs are on one layer while the other two are on the other. This results in efficient and stable power filtering, which means more power is available and more overhead for overclocking.

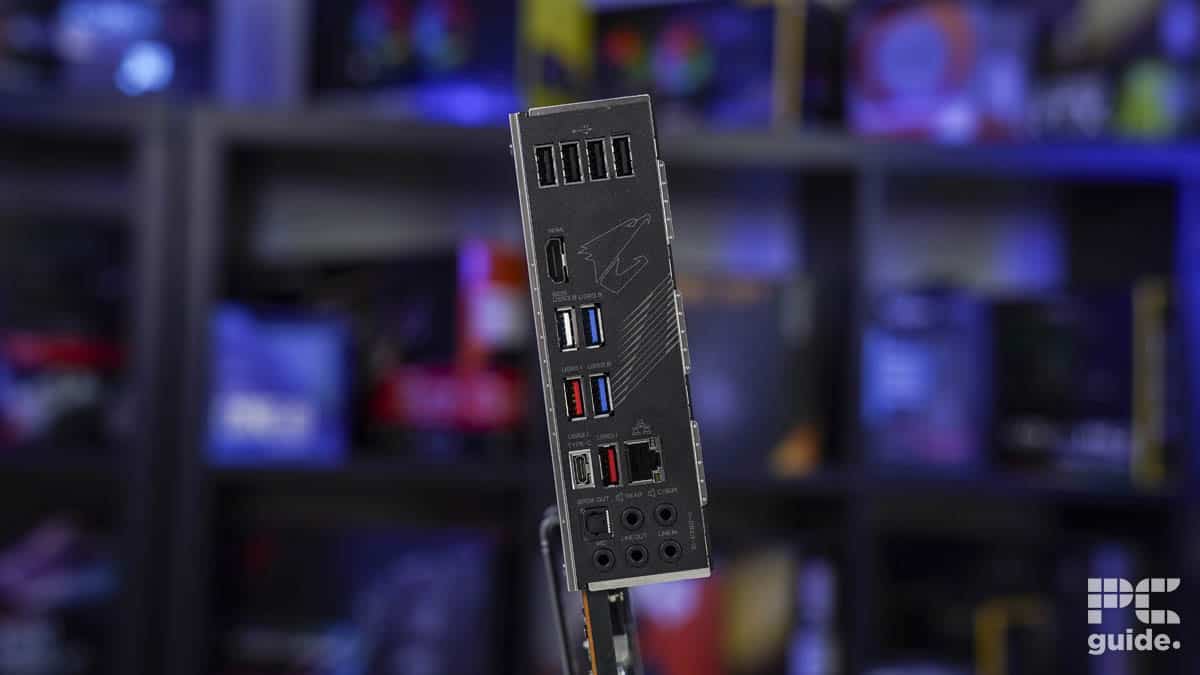

Gigabyte Aorus X570 Pro I/O and connectivity

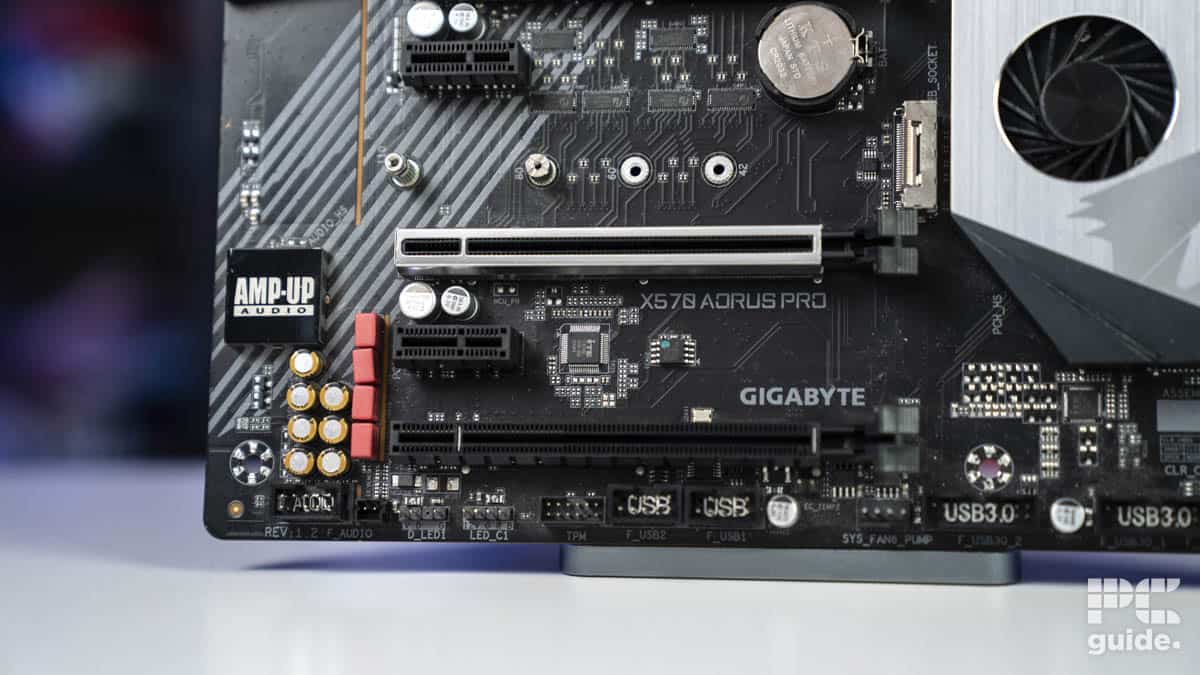

Gigabyte Aorus X570 Pro PCIe slots
Gigabyte Aorus X570 Pro overview
As for the PCIe slots, two slots can be used to install the GPU, and we recommend using the best GPU for Ryzen 7 5800XT for the best performance. The main PCIe slot gives you access to all 16 lanes, meaning no performance drops due to hardware restrictions.
You can also use the secondary slot, but only eight lanes are available. This is where AMD Crossfire comes into play. It allows you to install two GPUs simultaneously and harvest their performance to enhance the in-game results or professional workloads like rendering and editing.
Performance
As for its performance, we haven't gotten our hands on the 5800XT yet, so we went with the 5800X3D, which has almost the same specifications, and we've also reviewed it. We tested its performance by running software like Blender, Geekbench, and Cinebench.
The maximum power loss we saw was in Cinebench R23 multi-core testing, which came to 2.74W. This amount of power loss is expected and on the lower side making the Gigabyte Aorus X570 Pro a very efficient motherboard.
In addition, the VRMs sat comfortably at 47°C, partly due to our open-air test bench. So, the temperature should be even lower with the proper cooling solutions installed in an airflow PC case. To ensure there is adequate cross-ventilation, we recommend using the best PC case fans.
Alternative motherboards for the Ryzen 7 5800XT
We've also put together some alternative options for the 5800XT. We chose two options: the Gigabyte X570 Aorus Master and the ASUS TUF Gaming B550-Plus.
The Gigabyte Aorus X570 Master has Bluetooth connectivity, 3 extra fan headers, 2 extra M.2 sockets, and a much higher overclocked RAM speed. This motherboard gives you more options to customize your build.
The ASUS TUF Gaming B550-Plus costs less than the Gigabyte Aorus X570 Pro but has a higher overclocked RAM speed and comes with one extra PCIe slot, DisplayPort, and USB 3.2 connection.
Final word
Overall, the Gigabyte Aorus X570 is a solid option for the Ryzen 7 5800XT or any Ryzen 5000 CPU. It allows you to stack 128 GB of DDR4 RAM, which means better overall system performance and has a 2,933 MHz memory speed that can be overclocked to a faster speed.
That said, the 5800XT launched with a price tag of $249, while this motherboard costs $213.62. According to Camelcamelcamel, you can get a new 5800X3D for $209.96, which has better gaming performance than the 5800XT. This is something you should consider before you spend your hard-earned money.
